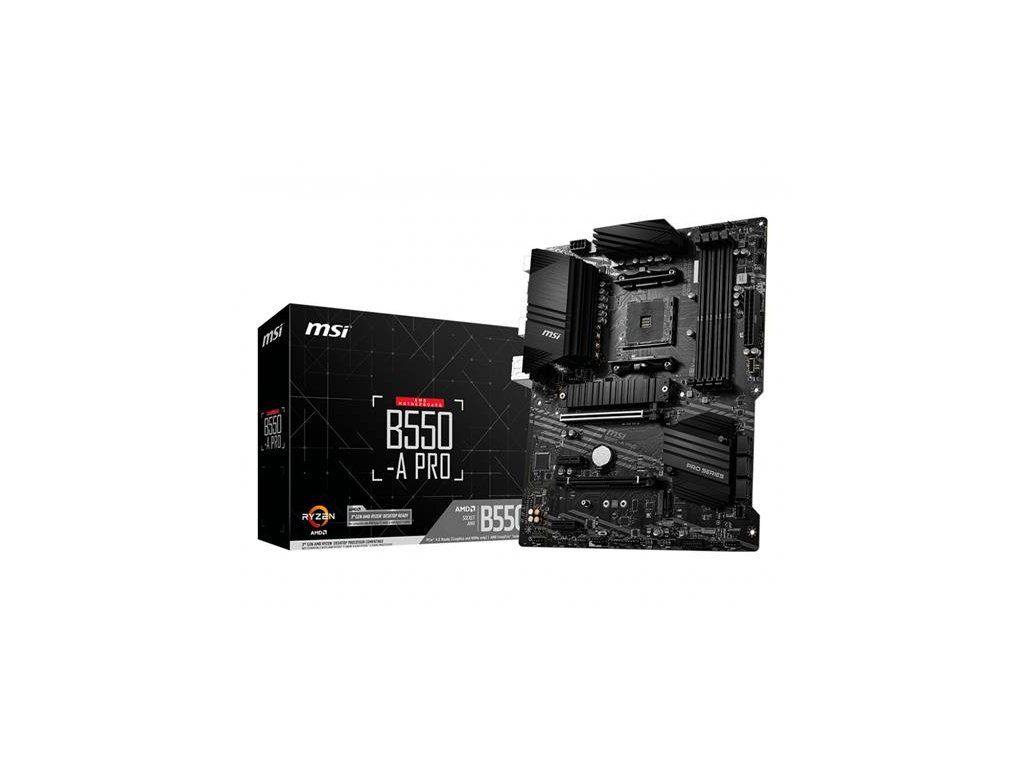

MSI B550-A PRO

Chipset: AMD B550 Rozměrový formát: Formát ATX (305 mm x 244 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update Patice procesoru: AM4 Pozice na paměti: 4x DDR4 Podpora pro paměti: •Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC •Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 •Dual channel memory architecture •Supports non-ECC UDIMM memory •Supports ECC UDIMM memory (non-ECC mode) •Supports un-buffered memory Grafická karta: na základě procesoru •1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz •1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Multi GPU: •Supports 2-Way AMD CrossFire™ Technology Zvuková karta: •Realtek® ALC892 Codec Síťová karta: •1x Realtek® 8111H Gigabit LAN controller RAID řadič: •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Rozšiřující sloty: •1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) •1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed •2x PCIe 3.0 x1 slots SATA: •6x SATA 6Gb/s ports M.2: •2x M.2 slots (Key M) USB: •zadní USB porty ( celkem 8 ) •4x USB 2.0 ports •1x USB 3.2 Gen 2 10Gbps Type-C port •1x USB 3.2 Gen 2 10Gbps port •2x USB 3.2 Gen 1 5Gbps Type-A ports •přední USB porty ( celkem 7 ) •1x USB 3.2 Gen 1 5Gbps Type-C port •2x USB 3.2 Gen 1 5Gbps ports •4x USB 2.0 ports Interní porty: •1x 24-pin ATX main power connector •1x 8-pin ATX 12V power connector •6x SATA 6Gb/s connectors •2x M.2 slots (M-Key) •1x USB 3.2 Gen 1 5Gbps Type-C port •1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) •2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) •1x 4-pin CPU fan connector •1x 4-pin water-pump fan connector •6x 4-pin system fan connectors •1x Front panel audio connector •2x System panel connectors •1x Chassis Intrusion connector •1x 4-pin RGB LED connector •2x 3-pin RAINBOW LED connectors •1x TPM module connector •1x Clear CMOS jumper Externí porty: •PS/2 Keyboard / Mouse •DisplayPort •1x LAN •HD Audio Connectors •Flash BIOS Button •HDMI •4x USB 2.0 •2x USB 3.2 Gen 1 5Gbps Type-A •1x USB 3.2 Gen 2 10Gbps Type-A •1x USB 3.2 Gen 2 10Gbps Type-C
